Operating voltage 15 to 30 Vdc
Standby current
No comms 275µA at 24 Vdc maximum
1 comms every 5 seconds with LED blink 445µA at 24 Vdc maximum
Terminal Wire 1.5 mm2 maximum
Output Rating 5A at 30 Vdc, resistive load. 5A at 240 Vac, resistive load.

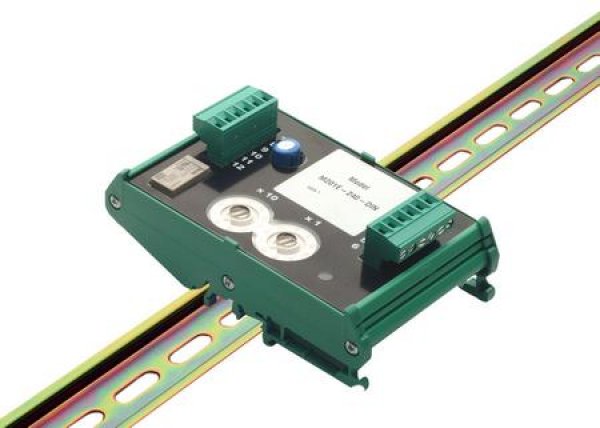

The Morley-IAS MI-D240CMO and MI-D240CMO-DIN control output modules are used with the Morley-IAS intelligent fire alarm control panels to provide management of 240Vac loads.
The modules are loop powered devices controlling an unsupervised double pole relay output with one normally open and one normally closed contact. The output relay is a bistable device, latching in either the on or the off state on command from the fire alarm control panel.
