Main
| Range of product | Modicon M580 |
| Product or component type | Processor module |
Complementary
| Number of racks | 8 |
| Local I/O processor capacity (discrete) | 6144 I/O |
| Local I/O processor capacity (analog) | 1536 I/O |
| Number of application specific channel (local rack) | 216 |
| Application specific I/O | Accurate time stamping Motion control SSI encoder HART Serial link Counter |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port 2 Ethernet TCP/IP for device network USB type mini B |
| Number of remote I/O station | 31 - 2 rack(s) per remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 6 Ethernet communication module 24 AS-Interface module |
| Communication service | RIO scanner DIO scanner |
| Memory description | Expandable flash, 4 GB for data storage Integrated RAM, 10 kB for system memory Integrated RAM, 64 MB for program and data |
| Application structure | 1 cyclic/periodic master task 128 event tasks 1 periodic fast task 2 auxiliary tasks |
| Number of instructions per ms | 40 Kinst/ms 100 % Boolean 60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
| Current consumption | 295 mA at 24 V DC |
| MTBF reliability | 600000 H |
| Marking | CE |

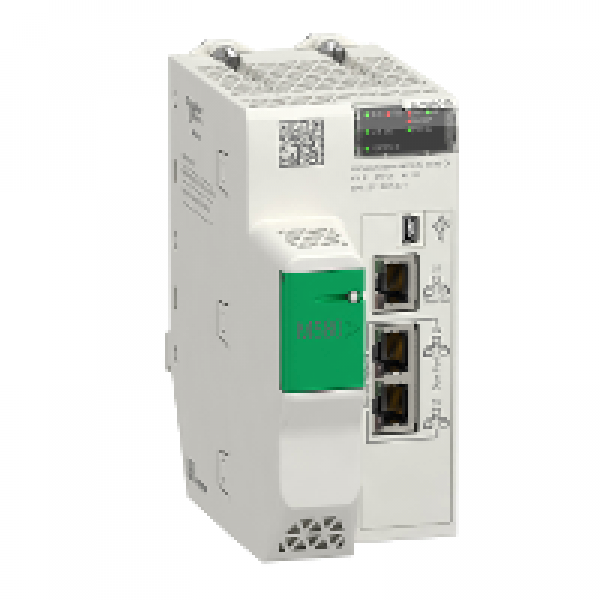

processor module M580 - Level 6 - Remote
