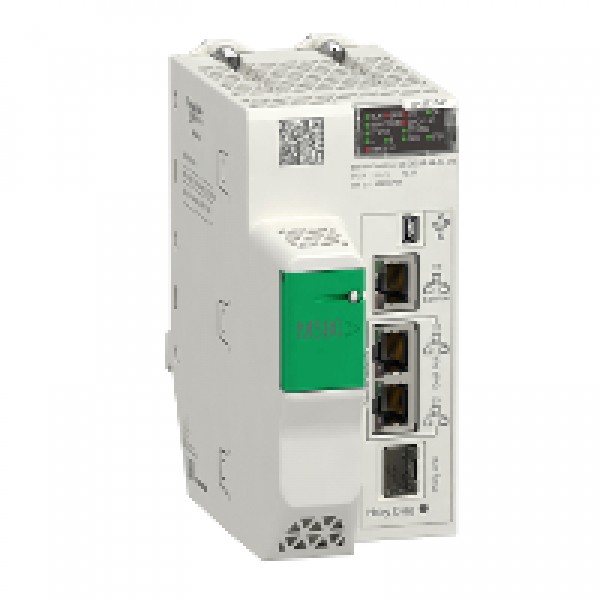

SCHNEIDER BMEH582040 edundant HSBY processor module M580 - Level 2 - Remote
Main
| Range of product | Modicon M580 |
| Product or component type | Redundant processor module |
Complementary
| Number of racks | 1 |
| Application specific I/O | Counter Accurate time stamping Serial link HART Motion control SSI encoder |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port 2 Ethernet TCP/IP for device network USB type mini B 1 Ethernet for HSBY port |
| Number of remote I/O station | 8 - 2 rack(s) per X80 remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 2 Ethernet communication module 8 AS-Interface module |
| Communication service | DIO scanner RIO scanner |
| Memory description | Expandable flash, 4 GB for data storage Integrated RAM, 10 kB for system memory Integrated RAM, 8 MB for program Integrated RAM, 768 kB for data |
| Application structure | 1 periodic fast task 1 cyclic/periodic master task |
| Number of instructions per ms | 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 10 Kinst/ms 100 % Boolean |
| Current consumption | 270 mA at 24 V DC |
| MTBF reliability | 600000 H |
| Marking | CE |
edundant HSBY processor module M580 - Level 2 - Remote
